Word of the Day: South Pointing Chariot (Inventions)

Monday, May 4th, 2009 | Word of the Day |

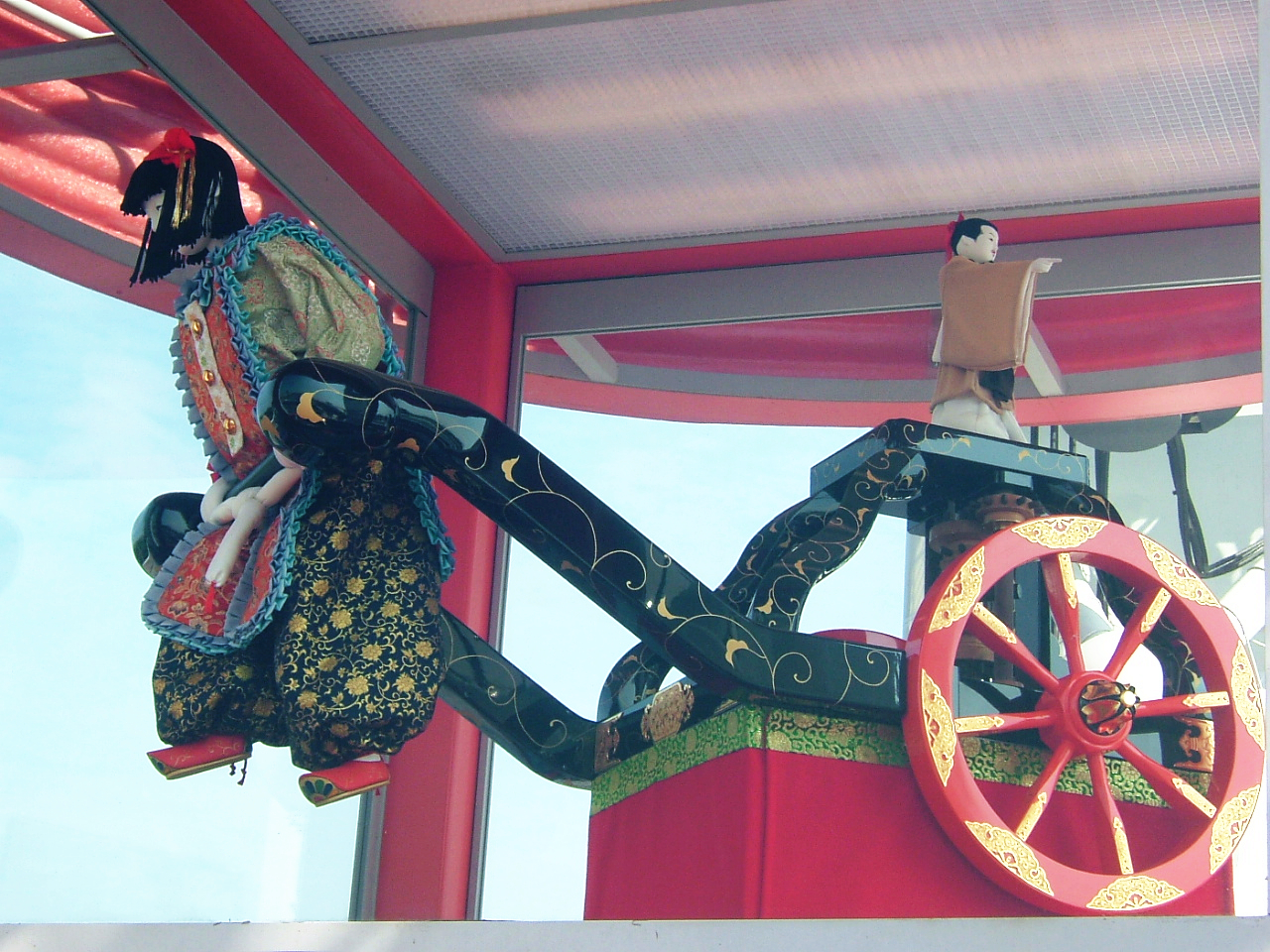

The South Pointing Chariot is widely regarded as one of the most complex geared mechanisms of the ancient Chinese civilization, and was continually used throughout the medieval period as well. It was supposedly invented sometime around 2600 BC in China by the Yellow Emperor Huang Di, yet the first valid historical version was created by Ma Jun (c. 200-265 AD) of Cao Wei during the Three Kingdoms. The chariot is a two-wheeled vehicle upon which is a pointing figure connected to the wheels by means of differential gearing. Through careful selection of wheel size, track and gear ratios, the figure atop the chariot will always point in the same direction, hence acting as a non-magnetic compass vehicle. Throughout history, many Chinese historical texts have mentioned the South Pointing Chariot, while some described in full detail the inner components and workings of the device.

Legend has it that Huang Di, credited as being the founder of the Chinese nation, lived in a magnificent palace in the Kunlun Mountains.

There was also at this time another tribal leader, Chi You, who was skilled at making weapons and waging war. He attacked the tribe of Yan Di, driving them into the lands of Huang Di. Huang Di was angered by this and went to war with Yan Di, initially suffering several defeats. At some stage in the fighting, Chi You conjured up a thick fog to confound Huang Di’s men. However, the South Pointing Chariot was used to find their way and they were ultimately victorious.
